ProDino Ethernet

45.22 (no EU VAT)

23 in stock

Offers

  • 5% off, 5-24 pcs.
  • 10% off, 25-99 pcs.
  • 15% off, 100+ pcs.

Description

Do Not recommend for new design

You can replace ProDiNo Ethernet V2 (this board) with ProDino MKR Zero Ethernet V1

If the ProDiNo Ethernet V2 is "Out of Stock" you might contact us. The production time is 4 weeks.

All the fun of a Leonardo, plus an Ethernet port, RS485 connection, 1 Wire input, some digital inputs and a few relays. It is the base device to extend your project to the IoT world. You can control sensors and actuators via the Internet as a client or a server. Also you can use it lots of and vary projects. We present you our KMP ProDino Ethernet V2 board.

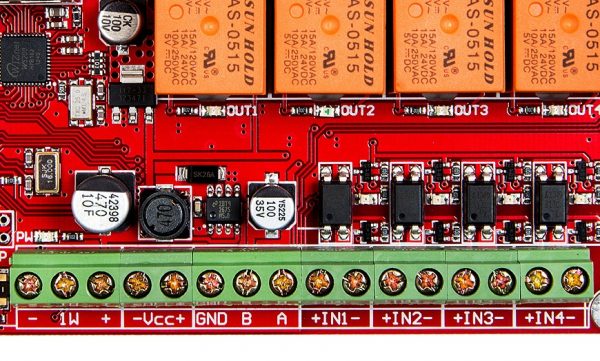

The KMP ProDino Ethernet is a microcontroller board based on the ATmega32U4, the W5200 TCP/IP Embedded Ethernet Controller and the DS75176 supplies RS485 communication. It has 4 digital optical isolated inputs, 4 relays outputs, 3 digital and 2 analog input/output pins (of P1), a RS485 communication connector, a 1 Wire connector, a 16 MHz crystal oscillator, a RJ45 connection, a micro USB connector, an ISP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adaptor to get started.

Additional information

Weight 138 g
Dimensions 120 × 85 × 25 mm
