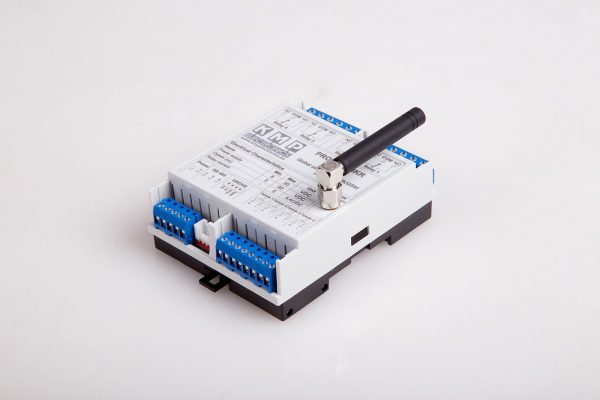

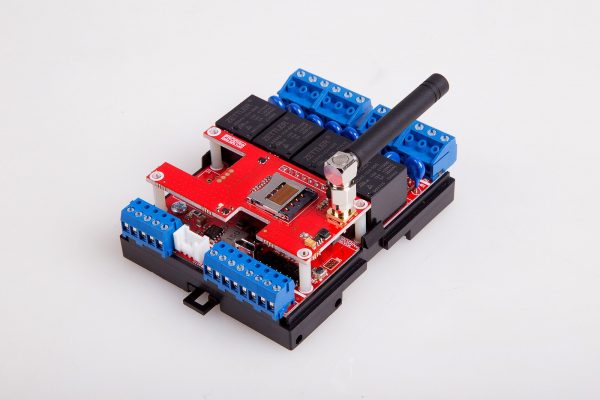

PRODINo MKR GSM

If you find faster, modern and powerful Arduino board with Ethernet connection, a PRODINo MKR GSM board is for you. You can do with it vary applications, it could be from home projects to industrial use. It also as a great educational tool for learning about 32-bit application development. The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core and SARAU201 GSM module.

PRODINo MKR GSM version is ideal for makers wanting to design IoT projects with minimal experience in networking. The board combines functionality of Zero and global GSM connectivity and is based on the Atmel SAMD21 and SARAU201 GSM module supply global coverage HSPA/GSM. The board features 32-bit computational power, a rich set of I/O interfaces, global GSM communication and easy-to-use Arduino Software (IDE) for code development and programming.

The PRODINo MKR GSM has 4 relays. The 4 Relays are a solution for driving high power loads that cannot be controlled by microcontroller’s digital IOs, due to the current and voltage limits of the controller. Each relay provides 2 pole changeover contacts (NO and NC). Relays are useful in switching on/off AC appliances like fan, light, motor or high current DC actuators like solenoid valve etc. Included four LEDs indicate the on/off state of each relay. If you want to connect some device with RS485 you can do it with this board.

How to use - you can see our tutorial and examples.
